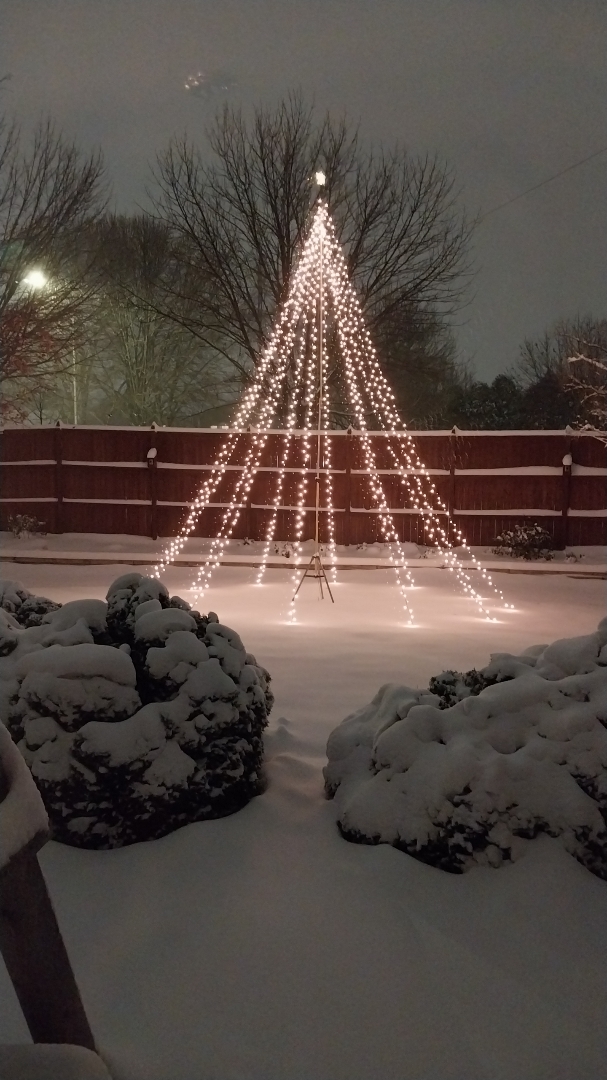

Back Yard Christmas Tree of Lights

Dennis Family Tradition Since 2003

Parts

Tripod, tree trimmer, 10 ft conduit with threaded insertion, 3 hose clamps, plastic sleeve, metal strap, star assembly, main hoist line and Velcro strap, 12 tent pegs, 10.5 ft measuring string, 12 wire loops, 12 strands of 100 clear lights, plastic tie wraps, 100ft extension cord
Star assembly has a pulley and carabiner clip attached with chains.

Remove blade and pulley assembly from tree trimmer and attach 10 ft conduit to tree trimmer with 3 hose clamps
Wrap metal strap around bottom section of tree trimmer and slide plastic sleeve over the bottom

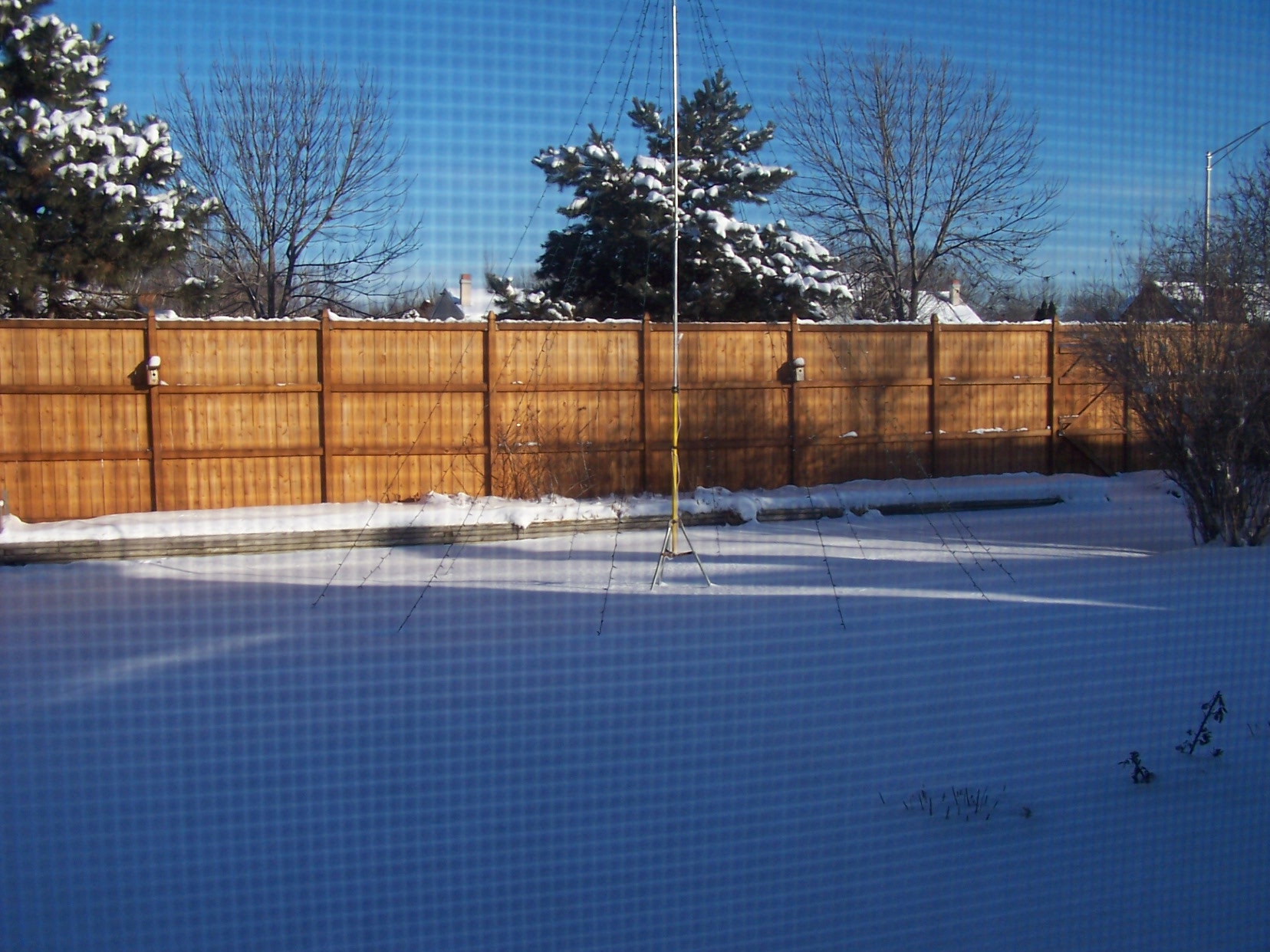

Fasten the tree trimmer assembly into the tripod with the strap reinforcing the top bolts and the sleeve at the bottom bolts. Extend tree trimmer during assembly so sliding section will not be clamped by tripod bolts.
Attach star assembly to threaded insertion on conduit and thread main hoist line through pulley securing the ends to the shaft with Velcro strap

Using 10.5 ft measuring string, locate 4 tent pegs at the 90 degree points
Locate 8 pegs putting 2 each at about 5 ft intervals between the 90 degree points
Drive pegs in and place wire loops in top openings

Attach strand at each of the 90 degree points by running strand through wire loop and securing with tie wrap (one strand with plug at bottom and the other three with plug at top)
Form loops at top end of strands using tie wraps, attach to fastener on star assembly and plug strands and star into each other securing wires with tie wrap
Raise trunk with 4 strands attached, extend tree trimmer to 3.5 ft between extender clamp and conduit, and adjust number of lights at bottom of each strand until taught
Attach strands at all other anchors (2 with plug at bottom) forming loops with tie wrap at top ends and then plug strands (2 groups of 4) into each other near loops
Attach top loops of strands to snap hooks on main hoist line
Raise main hoist line and secure at bottom then adjust bottom of strands until taught
